Design Guide

Feel free to check out our Popular Design Options for inspiration for your next project
To ensure the performance of our windows and doors over long periods of time, we suggest checking recommend sizes as listed below for each type of Homerrit uPVC windows and doors. Please contact us for any further queries regarding your project.

Awning Window

Recommended sash size:
Width 400mm to 1600mm
Height 400mm to 1200mm

Casement Window

Recommended sash size:
Width 400mm to 700mm
Height 400mm to 1600mm

Sliding And Stacker Window

Recommended sash size:
Width 600mm to 1500mm
Height 600mm to 1500mm

Tilt and turn window

Recommended sash size:
Width 400mm to 900mm
Height 600mm to 1600mm

Bi-folding window

Recommended sash size:
Width 600mm to 900mm
Height 1200mm to 1800mm

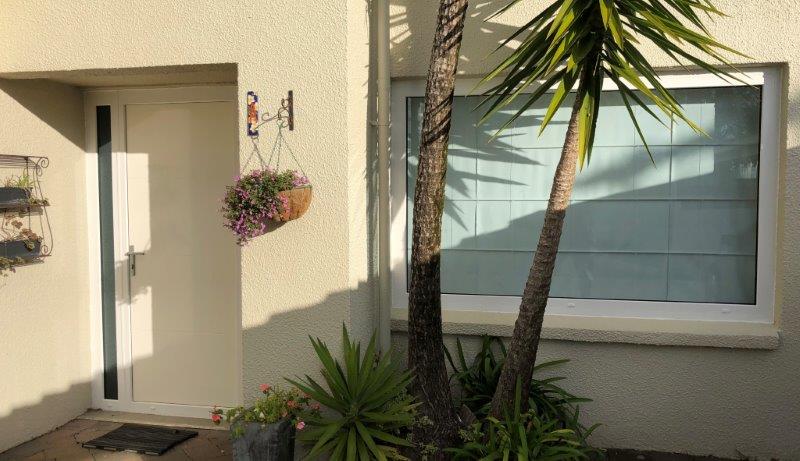

Entry door/Hinged door

Recommended frame size:
Width 900mm to 1000mm
Height 2000mm to 2200mm

French door

Recommended frame size:
Width 1200mm to 1800mm
Height 2000mm to 2400mm

Sliding door

Recommended frame size:
Width 1600mm to 3000mm
Height 2000mm to 2400mm

Stacker door

Recommended frame size:
Width 1800mm to 4500mm
Height 2000mm to 2400mm

Tilt and turn door

Recommended frame size:
Width 900mm to 1000mm
Height 2000mm to 2400mm

Bi-folding door

Recommended sash size:
Width 600mm to 900mm
Height 2000mm to 2400mm

Tilt and sliding door

Recommended sash size:
Width 800mm to 2000mm
Height 2000mm to 2400mm
