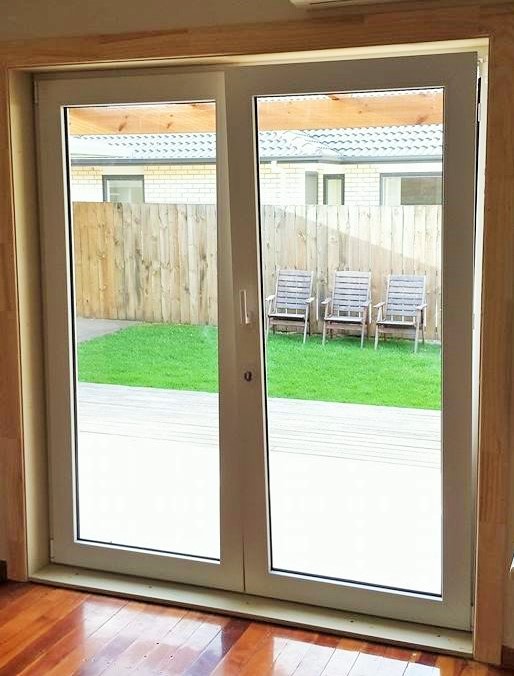

Homerit PVC-U tilt and turn doors are dual functioning. In addition to being a swing door, they can also serve as a ventilation system with the tilt in option.
The all-around locking hardware provides unparalleled security and insulation values.
By turning the door handle to the top position the sash is engaged in tilt mode, allowing the door to tilt inwards at the top to create cross ventilation without compromising security.
By turning the handle to the horizontal position, the sash is engaged in turn mode. This allows the door to turn like a normal inward opening side hung door.
With the handle in the downward position the door sash is compressed against the rubber gasket and the frame, leaving the unit completely sealed and locked at multiple points.
The tilt and turn door acts as a door and a window at the same time. This feature makes it an ideal solution for rooms with limited wall space.
With a tilt and turn door a room may not need other windows or may need less windows. This could be more cost effective than installing both a door and a window.
Tilt and turn doors also offer an unblocked view when full height glass is fitted.
This diagram shows a sophisticated Siegenia multi point locking hardware for tilt and turn doors.
Tilt and turn hardware is designed to take the weight of double or triple glazing and is three dimension adjustable. It also guarantees the water and air tightness of the door.
– Fully compliant with technical specifications set forth in European standards, EN12608.
– Multiple chamber system design enhances heat and sound insulation properties.
– Galvanised steel reinforcement imparts optimum stability to the window system.
– Compliant with Clause B1 and Clause E2 of NZBC for a Extra High wind zone.
